Product description

AMM is a 64to2 channel automatic microphone mixer. It offers several advanced mix modes and extensive controls for each channel.

AMM can be used to mix quickly a discussion round, a dialog with several speakers or even an audio conference with up to 32 microphones to a stereo signal.
AMM supports multiple channel configurations, from mono up to 32 stereo channels, depending on the DAW capabilities.

Overview

AMM mixes automatically 32 stereo channels into one stereo out channel, depending on the mixing modes and channel strength. AMM controls the envelope of the channel strength with the parameter Attack, Hold and Release.

Moderator Mode:

A single channel can be defined as moderator channel. This channel has priority over the other channels. As soon as the moderator channel is active, the other channels are dimmed by the value of the moderator attenuation. This function is available in all mixing modes.

t

t

t

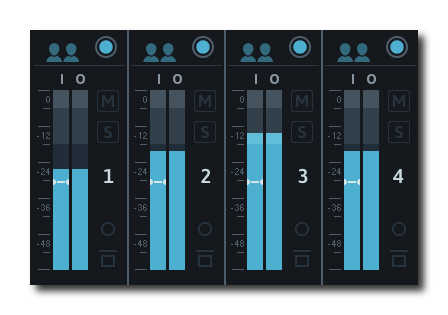

No channel flagged as moderator channel

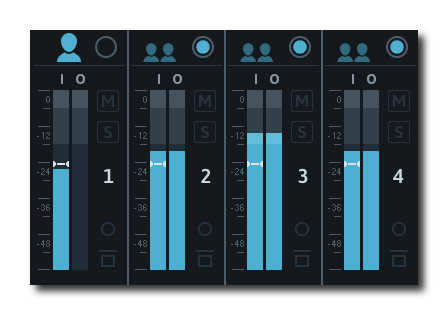

CH1 flagged as moderator channel, CH1 is below noise level

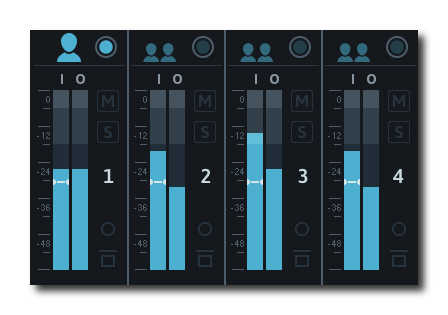

CH1 is above noise level, other channels are dimmed by -12dB

Mix Modes:

Normal Mixing (Mix mode off)
AMM is used as normal 32to2 mixer including moderator function.

Auto Mixing (Mix mode Auto)
AMM automatically reduces the strength of a channel when it is not being used. It lowers the hiss, rumble, reverberation and other extraneous noise that occur when several microphones operate simultaneously. The strength of suppression is controlled by the parameter strength.

Auto Balanced Mixing (Mix mode Auto Bal.)
AMM automatically reduces the strength of a channel when it is not being used. The sum of all channels is not louder as the loudest channel. The strength of suppression is controlled by the parameter strength.

Prio Mixing (Mix mode Prio)
AMM automatically mutes all channels except the loudest channel. It cancels the hiss, rumble, reverberation and other extraneous noise that occur when several microphones operate simultaneously.

r

r

r

r

Mix mode off

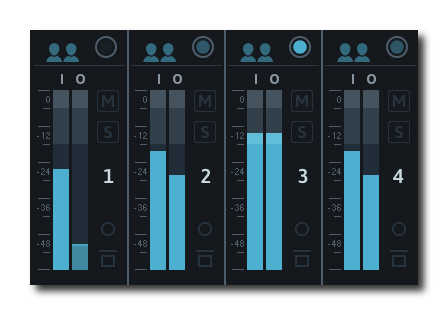

Mix mode auto, louder channels contribute more

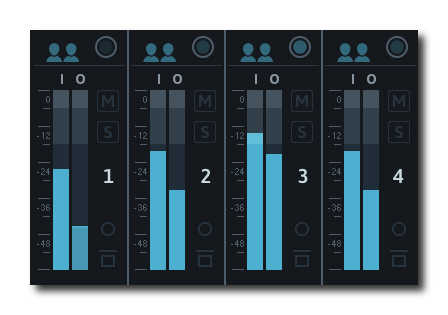

Mix mode auto balanced, louder channels contribute more, but sum is not louder than loudest

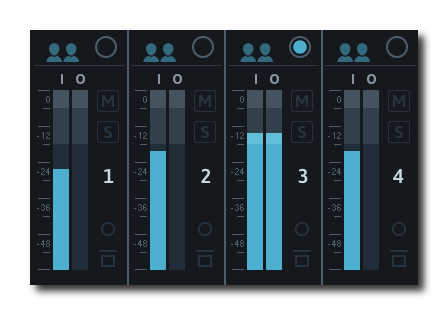

Mix mode prio, loudest channel mutes all other channels.

Features

  • 32 internal stereo channels
  • internal mixing or external mixing with sender/receiver mode
  • reverse mixing mode
  • multi channel mode, 64to64 channel mixer (VST2 only)
  • speech pre filter
  • switchable pre-delay
  • envelope controlled channel strength
  • noise gate
  • mix modes: normal, auto, auto balanced, prio
  • moderator mode
  • extensive channel controls like mono, trim, bypass, weight, mute, solo and pan
  • input/output metering
  • write channel strength as automation data to DAW
  • click-free 64-bit internal processing
  • large and easy to use GUI
  • free GUI scaling
  • product needs to be activated with license key
  • free update for existing AMM customers
  • demo version available

NOTE:

  • Please do not mix sender and mixer of different plugin formats. Otherwise, sender and receiver cannot communicate to each other.
  • AMM mix mode "Ext. Mixer": all tracks with AMM sender instance need to be routed into a mix track with AMM mix instance.
  • If anticipative FX processing or ASIO Guard is enabled use the reverse mixing mode to avoid adio stream sync issues.

Details

  • Version: 2.1.0
  • Last update: 22.02.2024
  • PDF manual: Download
  • Changelog: View

Buy now

€ 99.00
﹡VAT may apply based on your location.

Important notes:

Before downloading and installing please check the system requirements!

Demo version versus Registered version:
In demo mode (without registering) the plugin mutes audio every 90 seconds for a short period. This could be circumvented by clicking on the "TBProAudio" logo within 90 seconds.

Activation:
After installation product is in demo mode and needs to be activated. Please follow the steps described in the manual or here.

Purchase:
Before any purchase please test the product, read and accept the terms listed here.
